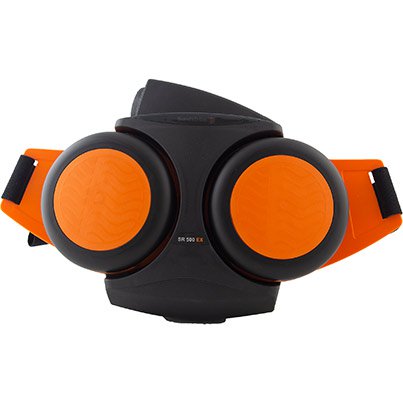

Sundström SR 500 Ex Fan Unit Uk
£1,300
Easily operated battery powered fan with particle- or combination filters
Description
The SR 500 EX fan is explosion-proof and specially adapted for use in an explosive atmosphere. The SR 500 EX is included together with filters and head-tops in Sundström fan-assisted respiratory protective devices. The SR 500 EX can be used as an alternative to filter protections in all situations in which the latter are recommended. This applies particularly to situations in which the work is intensive, hot or of long-duration. The fan is equipped with filters and the filtered air is supplied through a breathing hose to the head-top. The latter is then pressurized, which prevents the surrounding pollutants from being admitted.
Technical Specifications
| Art.nr. | H06-2018 |
|---|---|
| Color | Black, Orange |
| Shelf life (years) | 5 |
| Country of manufacture | Sweden |
| Operating temp. | -10 – +40 °C, < 90 % RH |
| Storage temp. | -20 – +40 °C, < 90 % RH |
| Approval | EN 12941:1998 + A2:2008, EN 12942:1998 + A2:2008, EN 13463-1:2009, EN 60079-0:2012, EN 60079-11:2012 |
| Classification 1 | II 2 D Ex ib IIB IIIC T195° Db, II G Ex ib IIA T3 Gb, II G Ex ib IIB T3 Gb |
| Cell type | NiMh 13,5V 2,1 Ah |
| Model description | SR 500 EX Fan unit UK |
| Directive 2 | ATEX 2014/34/EU |
| Directive 1 | (EU) 2016/425 PPE |
Downloadable Files
-
Instruction for useL67-0310 SR 500_SR 500 EX_SR 700 Extended guarantee Rev 06.pdf (232.88 KB)
-
Operating instructionsOI06H-2018 SR 500 EX Rev 02.pdf (1.37 MB)
-
Exploded viewSPRH06-2118 SR 500 EX System overview Rev 06.pdf (1.53 MB)
-
Product leafletP06H-2018 SR 500 EX Rev 11.pdf (5.51 MB)
-
Instruction for useL67-2010 SR 500 EX Rev 11.pdf (9.59 MB)
-
Exploded viewSPRH06-2018 SR 500 EX Rev 05.pdf (468.39 KB)
